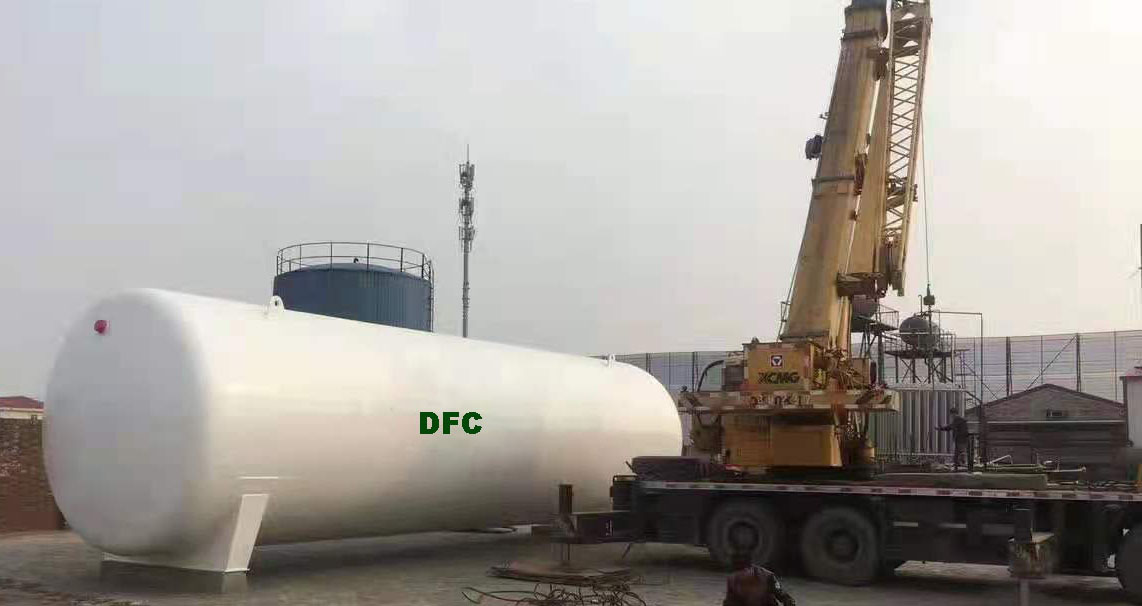

Horizontal LOX Storage Tank, 5-200 M3, ASME, PED

Key Specifications / Features

Model No.: Hits: 119

Horizontal LOX Tank Maker: Liquid Oxygen (LOX) Storage Tank, Volume 5-200 M3, Design Code ASME, PED, Horizontal, Customed Volume for Various Needs.

Request a quote Share

Tags:

Next: ASME PED Medical Liquid Oxygen Storage Tank

Previous: Double-layer Medical Oxygen O2 Storage Tank for Hospital Use

Detail Information

DFC has been committed to the medical liquid oxygen (LOX) industry for decades. Since the coronavirus happened in 2019, the demand for liquid oxygen storage tanks in 2020 has
doubled and completed 600 units in this year. The sales in the first quarter of 2021 are 20% higher than the same period of 2020. DFC is willing to contribute to the world in defeating COVID-19 and using our professional manufacturing to realize it.

DFC CRYOGENIC LIQUID OXYGEN STORAGE TANK

TYPE	MODEL	VOLUME (M3)	SPECIFICATION		DESIGN CODE
TYPE	MODEL	VOLUME (M3)	Inside shell	Outside Shell	DESIGN CODE
Vertical	CFL-5/0.8	5	φ1400X3672X6	φ1900X5115X8	ASME/PED
Vertical	CFL-5/1.6	5	φ1400X3672X8	φ1900X5115X8	ASME/PED
Vertical	CFL-10/0.8	10	φ1700X4705X6	φ2200X6035X8	ASME/PED
Vertical	CFL-10/1.6	10	φ1700X4705X10	φ2200X6035X8	ASME/PED
Vertical	CFL-15/0.8	15	φ1800X6214X6	φ2300X7730X8	ASME/PED
Vertical	CFL-15/1.6	15	φ1800X6214X11	φ2300X7730X8	ASME/PED
Vertical	CFL-20/0.8	20	φ2100X6146X7	φ2600X7655X8	ASME/PED
Vertical	CFL-20/1.6	20	φ2100X6146X12	φ2600X7655X8	ASME/PED
Vertical	CFL-30/0.8	30	φ2100X9046X8	φ2600X10605X8	ASME/PED
Vertical	CFL-30/1.6	30	φ2100X9046X14	φ2600X10605X8	ASME/PED
Vertical	CFL-50/0.8	50	φ2600X9885X9	φ3200X11670X10	ASME/PED
Vertical	CFL-50/1.6	50	φ2600X9885X16	φ3200X11670X10	ASME/PED
Vertical	CFL-100/0.8	100	φ3000X14670X11	φ3600X16550X14	ASME/PED
Vertical	CFL-100/1.6	100	φ3000X14670X20	φ3600X16550X14	ASME/PED
Vertical	CFL-150/0.8	150	φ3200X19308X12	φ3800X22000X14	ASME/PED
Vertical	CFL-200/0.8	200	φ3400X22624X14	φ4000X25300X14	ASME/PED

DFC CRYOGENIC LIQUID OXYGEN STORAGE TANK

TYPE	MODEL	VOLUME (M3)	SPECIFICATION		DESIGN CODE
TYPE	MODEL	VOLUME (M3)	Inside shell	Outside Shell	DESIGN CODE
Horizontal	CFL-5/0.8	5	φ1400X3672X6	φ1900X4802X8	ASME/PED
Horizontal	CFL-5/1.6	5	φ1400X3672X8	φ1900X4802X8	ASME/PED
Horizontal	CFL-10/0.8	10	φ1700X4705X6	φ2200X5980X8	ASME/PED
Horizontal	CFL-10/1.6	10	φ1700X4705X10	φ2200X7210X8	ASME/PED
Horizontal	CFL-15/0.8	15	φ1900X5626X6	φ2400X7210X8	ASME/PED
Horizontal	CFL-15/1.6	15	φ1900X5626X11	φ2400X7210X8	ASME/PED
Horizontal	CFL-20/0.8	20	φ2100X6146X7	φ2600X7310X8	ASME/PED
Horizontal	CFL-20/1.6	20	φ2100X6146X12	φ2600X7310X8	ASME/PED
Horizontal	CFL-30/0.8	30	φ2100X9046X8	φ2600X10200X8	ASME/PED
		30
